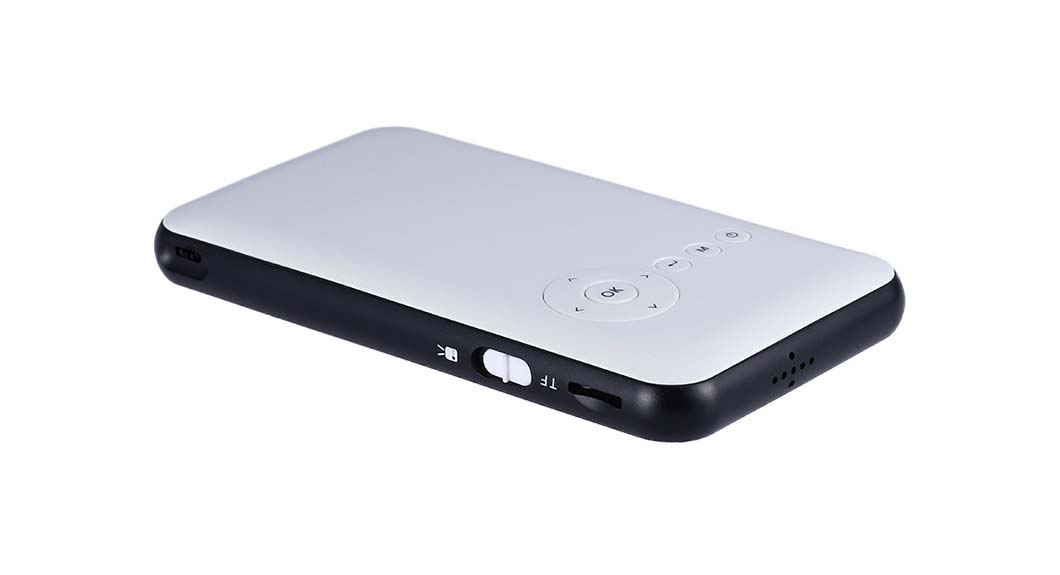

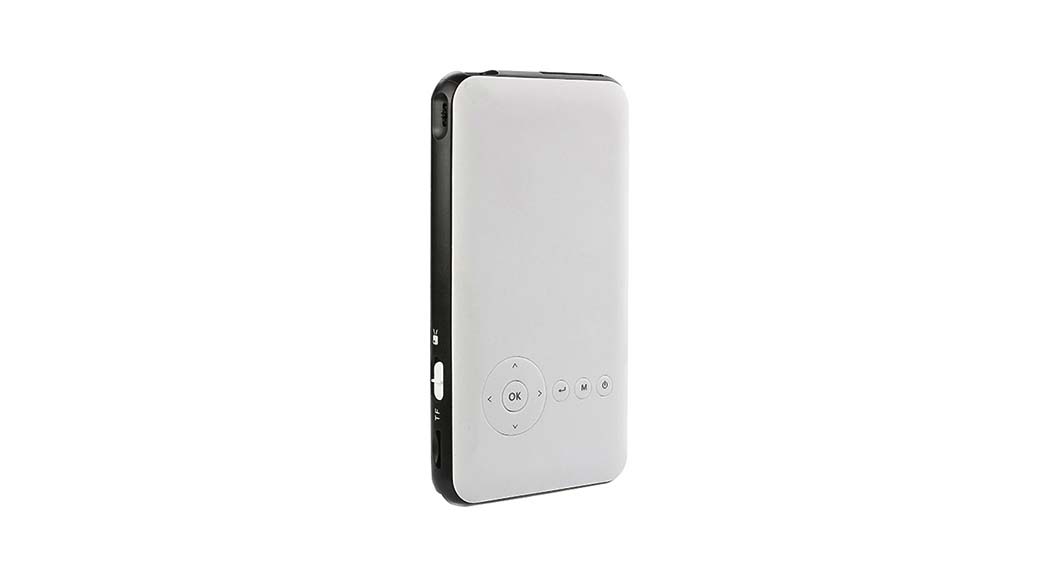

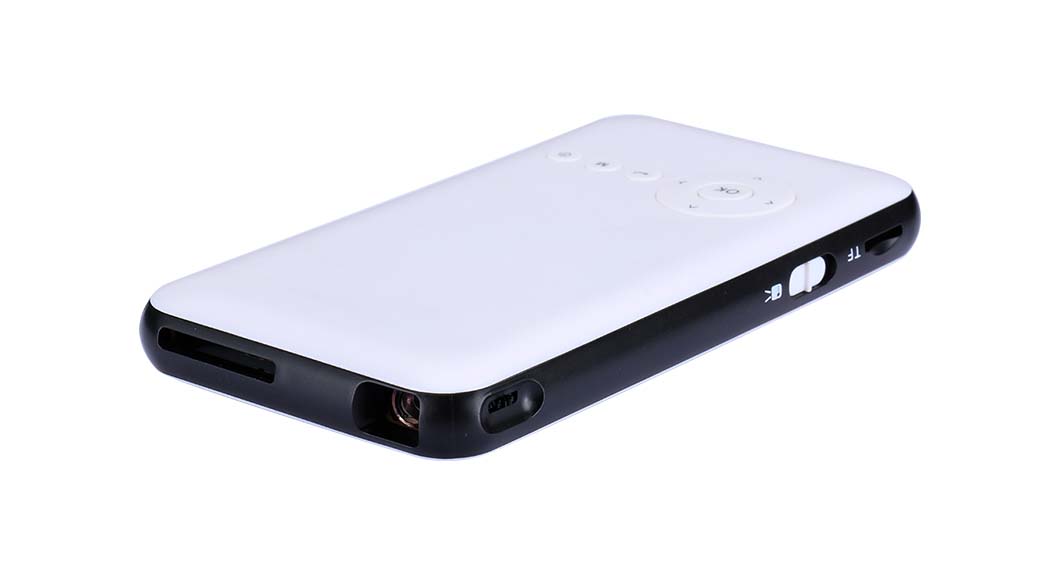

Highlights: MINI size, small as a cell phone, Latest system, Auto keystone correction, Wireless screen sharing, HDMI out port, 2.4G/5G WIFI, Silent fan, Bluetooth 4.0, Built in battery working time up to 2 hours, Mechanical button control
/D05A(M6)-01.jpg)
/D05A(M6)-1060-01.jpg)
/D05A(M6)-1060-02.jpg)
/D05A(M6)-1060-03.jpg)
/D05A(M6)-1060-04.jpg)
/D05A(M6)-1060-05.jpg)
/D05A(M6)-en-01.beifen.jpg)
/D05A(M6)-02.jpg)
/D05A(M6)-03.jpg)
/D05A(M6)-04.jpg)
/D05A(M6)-05.jpg)
/D05A(M6)-06.jpg)
| Projection Specification | ||
|---|---|---|
| Display Technology | DLP(0.3"DMD) | |
| Projection Light Source | RGB LED OSRAM Q6 | |
| Light lifetime | Up to 20000 hours | |
| Light Luminance | 50 ANSI Lumens | |
| Light Type | LED | |
| Standard Resolution | WVGA 854*480 | |
| Projection Area | 30-120 inch | |
| Contrast | 1000:1 | |
| Projection Ratio | 1.19:1 | |
| Distortion | <1.0％ | |
| Luminance Uniformity | >85% | |
| Projection Distance | 1-5m（37.8inch @1m） | |
| Aspect Ratio | 16:9 | |
| Focus mode | Manual focus | |
| Keystone Correction | Automatic，Vertical: ±40 degree | |
| Projector Character | Interaction | |
| Projection Mode | Front Projection | |
| Basic parameters | ||
|---|---|---|
| Built-in Battery | 5000MA | |
| Usage time | work for about 2 hours | |
| Extended Storage | Support TF Card and Hard Disk | |
| Operation Mode | Support（IR) Infrared and 2.4G wireless control ,mechanical button | |
| Built-in speaker | one 1w speaker | |
| Light machine Consumption | 3W | |
| Whole Power Consumption | 5W | |
| Power Performance | AC100-240V，50/60Hz DC 5V 3A | |

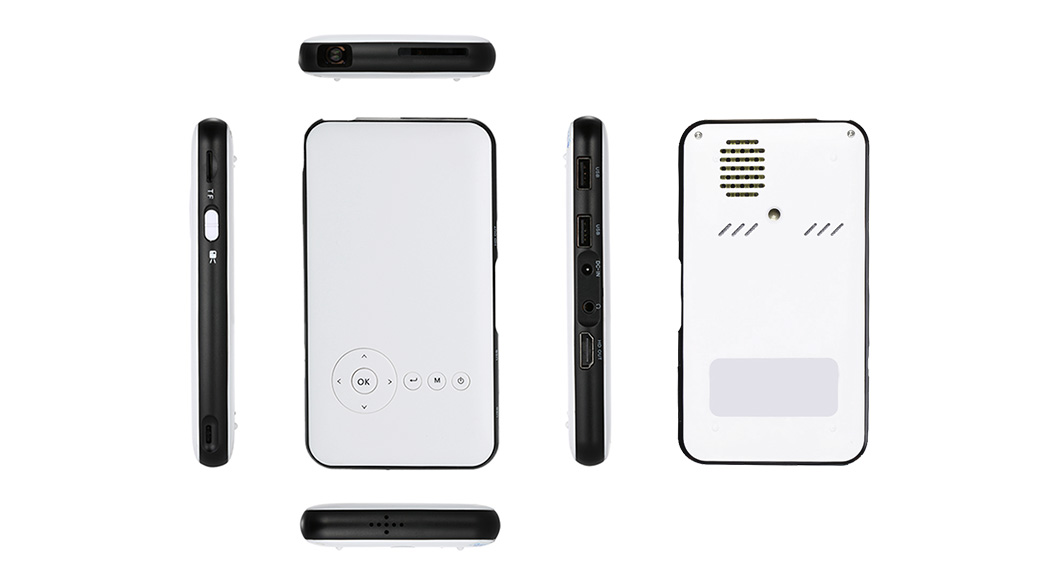

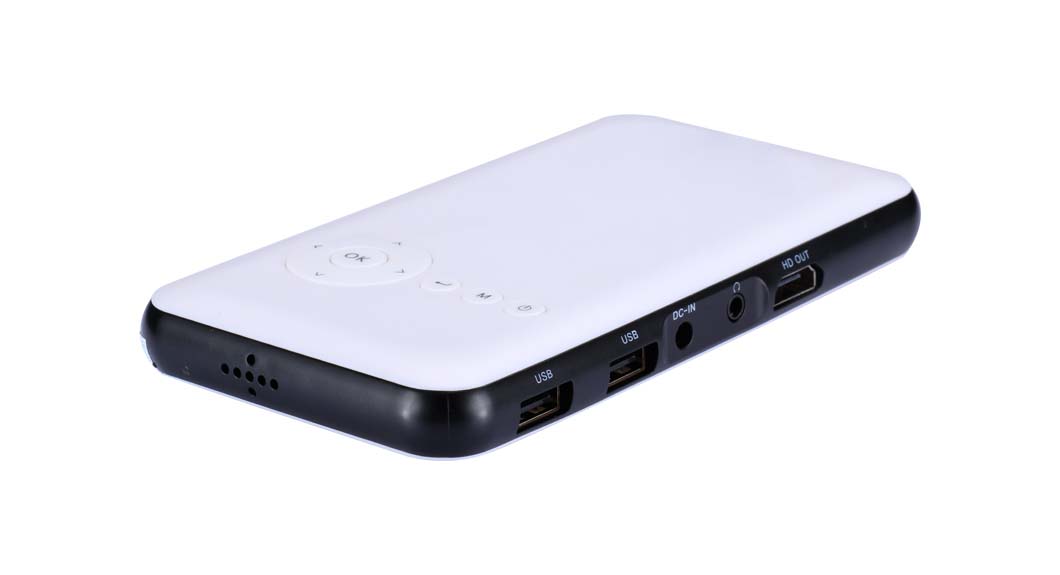

| Interface | 1*TF Card: Max 32G | |
| Interface | 1*HDMI: HDMI OUT 1.4 | |
| Interface | 2*USB: USB 2.0 Support USB hard disk data read | |
| Interface | 1*Earphone: Audio output, 3.5mm joint (can connect with earphone or speaker box) | |
| Interface | 1* DC input: DC 5V 3A | |
| Package | ||
|---|---|---|

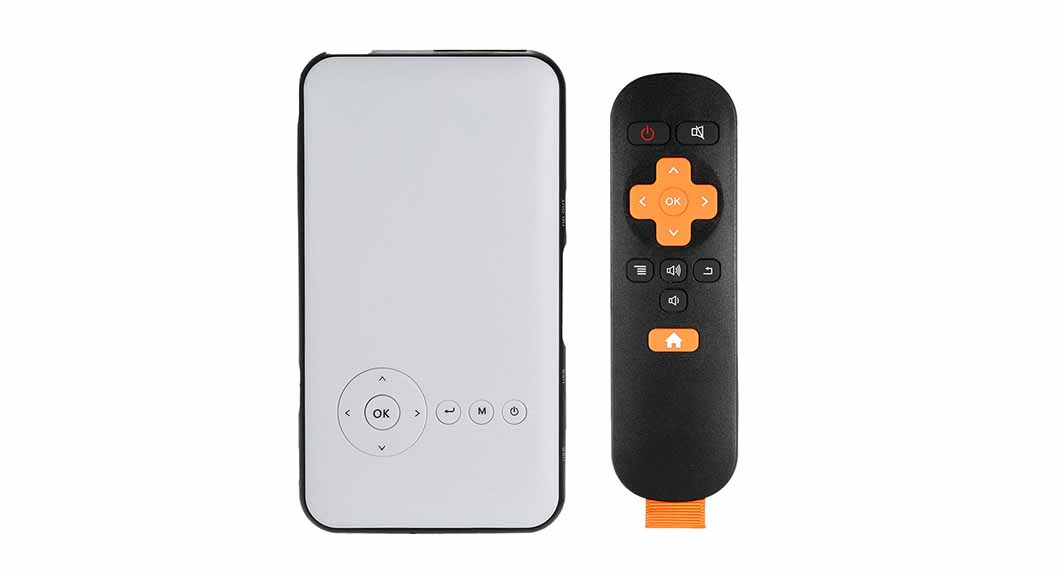

| Package | Remote control、HDMI cable、Adapter、Manual | |
| Colour | White+Black | |
| Dimension | 145*80*17.5mm | |
| Net weight | 218g | |
| Gift Box weight | 698g | |
| Gift Box Size | 189x156x85mm | |
| Carton box size | 390*357*335mm | |
| Carton box weight | 11.87kg/16set | |
